FacsScan

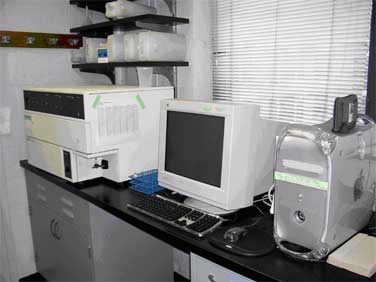

The Becton Dickinson FACScan benchtop analyzer. This instrument is equipped with a 15 mW 488 air-cooled argon-ion laser. This setup allows for 3-color immunofluorescence protocols in addition of forward and side scatter parameters. CellQuest is used for data acquisition and analysis that is run on a Macintosh platform. The FACScan is available 24 hours a day, seven days a week to trained investigators. Training is done by appointment. Please do not attempt to use this machine without training.
Click here to download the FacsScan setup document
Preferred/Common Fluorochromes (other fluorochromes are shown below)
- FL1: FITC, AlexaFluor 488, GFP
- FL2: PE, PI
- FL3: PerCp, PE Cy5 (Tricolor), Cy5.5

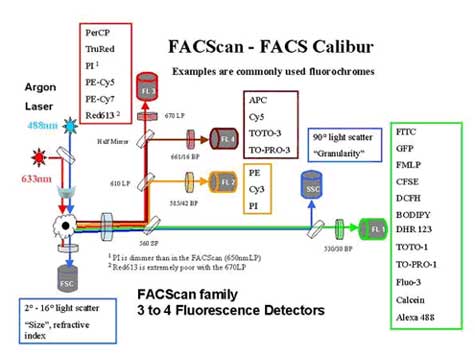

Figure provided by Alan Saluk at the Scripps Research Institute
